BL30 Low Temperature Testing Equipment Copper Brazed Heat Exchanger for Agricultural
Product Description
Working principle
Brazing the stainless steel plates together eliminates the need for sealing gaskets and thick frame plates. As well as holding the plates together at the contact points, the brazing material seals the package. Baode's brazed heat exchangers are brazedat all contact points, ensuring optimal heat transfer efficiency and pressure resistance. The plates are designed to achievelongest possible lifetimes. Since virtually all material is used for heat transfer, the brazed plate heat exchanger is very compactin size and has a low weight and a low hold-up volume. The bphe (brazed plate heat exchanger ) consists of thin corrugatedstainless steel plates which are vacuum brazed together using copper as the brazing material. Copper brazed units can be used for numerous of applications. For food applications and applications involving aggressive fluids, nickel brazed units are requested.
Refrigeration systems:
Evaporator,
Condenser,
Economizers and desuperheaters
Air dryer
Heat pump
Absorption chiller
HVAC
Radiant floor,
Snow melt,
Boiler
Solar water heat exchanger
District heating
Other industrial applications such as:
Heat recovery and
Oil cooler: Hydraulic oil cooling, engine oil cooling, and fuel oil heating.
Steam heating.

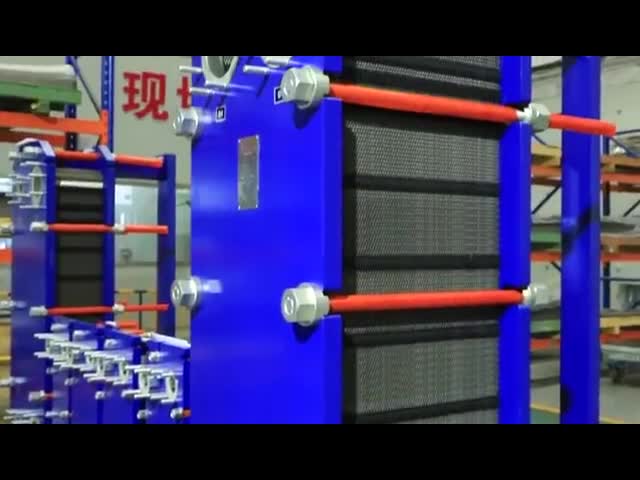

Flat plate heat exchanger
Beer wort cooler
Milk pasteurization
Wind turbine oil cooler
Marine oil cooler
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support
| Model | BL100 |
| Width, A [mm] | 248 |
| Height, B [mm] | 495 |
| Length, E [mm] | 10+2.15n |
| Horizontal port distance, C [mm] | 157 |
| Vertical port distance, D [mm] | 168 |
| Max pressure [Mpa] | 3/4.5 |
| Max flowrate [M3/h] | 42 |
| Weight [kg] | 6.5+0.37n |
Model
BL1
Application
Swimming pool water heating. Simple, strong, compact and
highly reliable, Baode Brazed Plate heat exchangers are designed to efficiently reheat
and maintain temperature of water in swimming pools of all
dimensions and capacities from primary heat source such as
boiler, solar installation, heat pump etc.
Standard design
Complete packaged module including:
Stainless steel plate heat exchanger, for operation with sea water or slightly corrosive water (balneo-therapy,
thermal spring water).
Standard materials
Cover plates: Stainless steel AISI 316
Connections: Stainless steel AISI 316
Plates: Stainless steel AISI 316
Brazing material: Copper
Particulars required for quotation
To enable Baode's representative to make a specific quotation, enquiries should be accompanied by the following particulars:
– flow rates or heat load required
– temperature program
– physical properties of liquids in question
– desired working pressure
– maximum permitted pressure drop
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support
| Model | BL14 | BL20 | BL26 | BL26C | BL50 | BL95 |
| Width, A [mm] | 78 | 76 | 111 | 124 | 111 | 191 |
| Height, B [mm] | 206 | 310 | 310 | 304 | 525 | 616 |
| Length, E [mm] | 9+2.3n | 9+2.3n | 10+2.36n | 13+2.4n | 10+2.35n | 11+2.35n |
| Horizontal port distance, C [mm] | 42 | 42 | 50 | 70 | 50 | 92 |
| Vertical port distance, D [mm] | 172 | 282 | 250 | 250 | 466 | 519 |
| Max pressure [Mpa] | 3 | 3 | 3 | 3/4.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 3.6 | 3.6 | 8.1 | 8.1 | 12.7 | 39 |
| Weight [kg] | 0.6+0.06n | 1.0+0.08n | 1.3+0.12n | 2.2+0.16n | 2.6+0.19n | 7.8+0.36n |
| Model | BL120 | BL190 | BL200 | BL1400 | BL100 * | BL200 * |
| Width, A [mm] | 246 | 307 | 321 | 429 | 248 | 322 |
| Height, B [mm] | 528 | 696 | 738 | 1398 | 495 | 739 |
| Length, E [mm] | 13+2.36n | 13+2.75n | 13+2.7n | 22+2.78n | 10+2.15n | 13+2.55n |
| Horizontal port distance, C [mm] | 174 | 179 | 188 | 220 | 157 | 205.2 |
| Vertical port distance, D [mm] | 456 | 567 | 603 | 1190 | 405 | 631 |
| Max pressure [Mpa] | 3 | 3 | 2.1 | 1.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 42 | 100 | 100 | 300 | 42 | 100 |
| Weight [kg] | 7.2+0.52n | 12.5+0.72n | 13+0.75n | 31.8+1.73n | 6.5+0.37n | 13+0.78n |
